Product Highlights
- Smart managementefficient order control

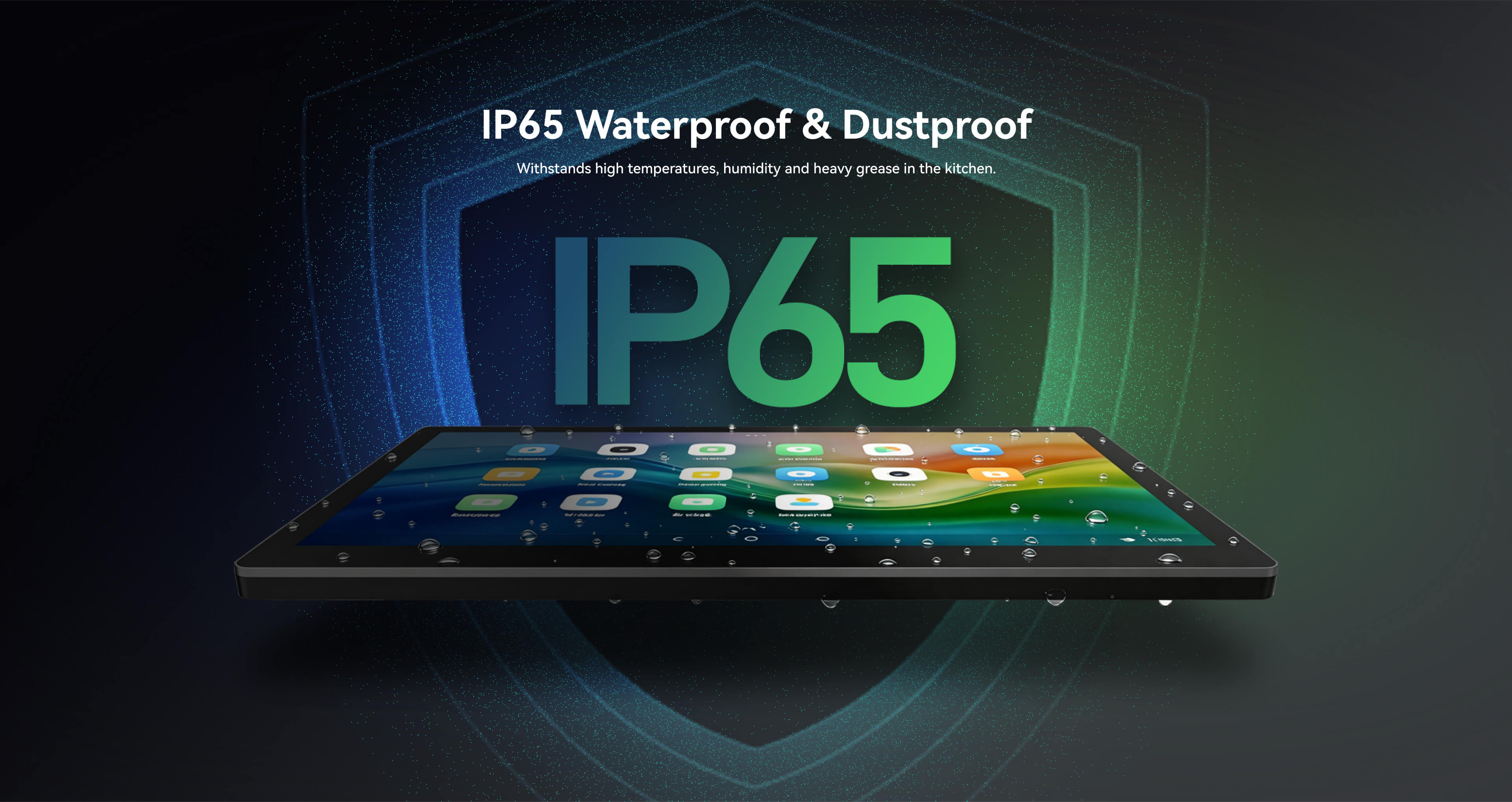

- IP65built for the kitchen environment

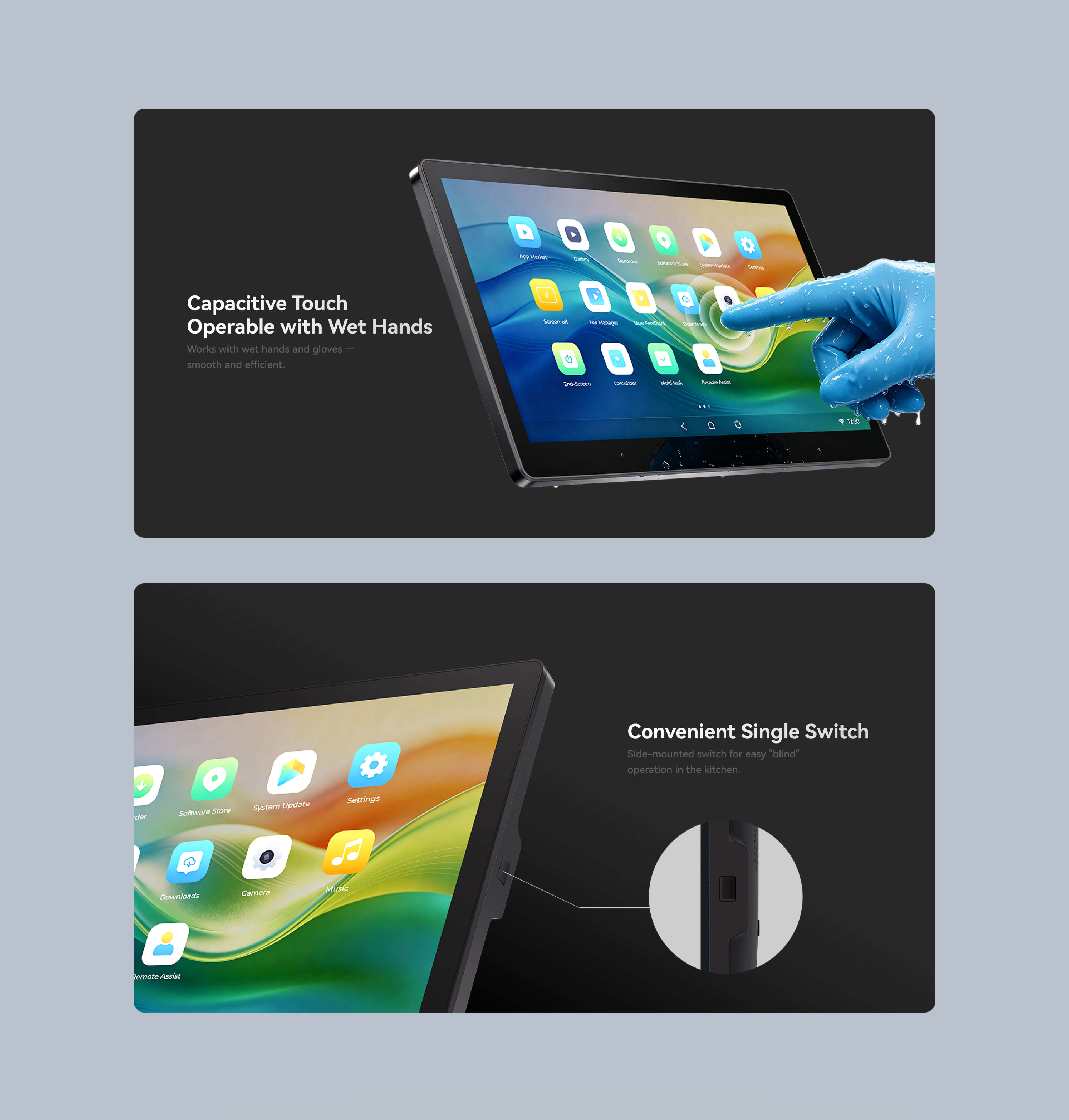

- Capacitive touchoperable with wet hands
- 1080PFHD display

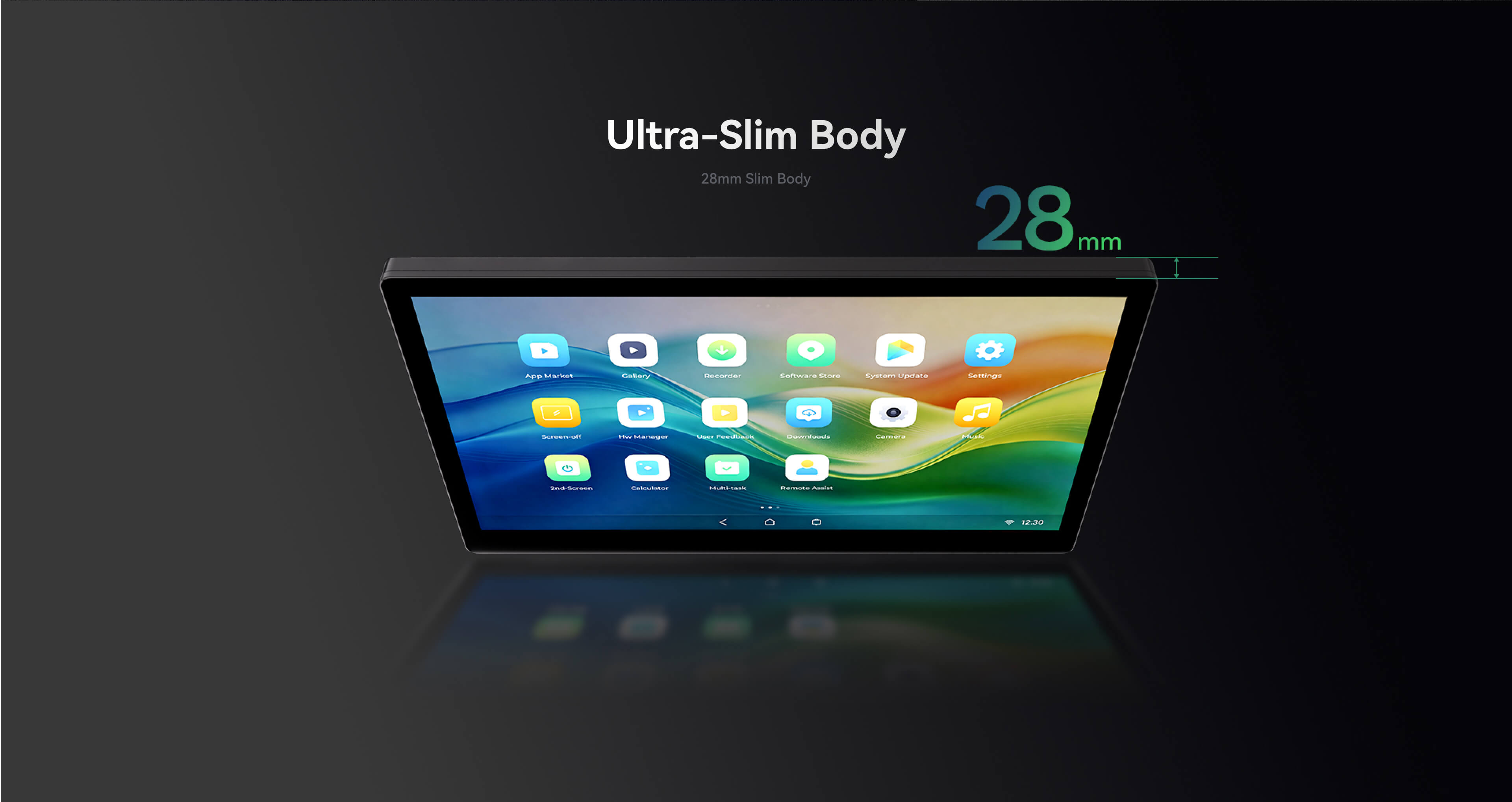

- Ultra-slim28mm slim body

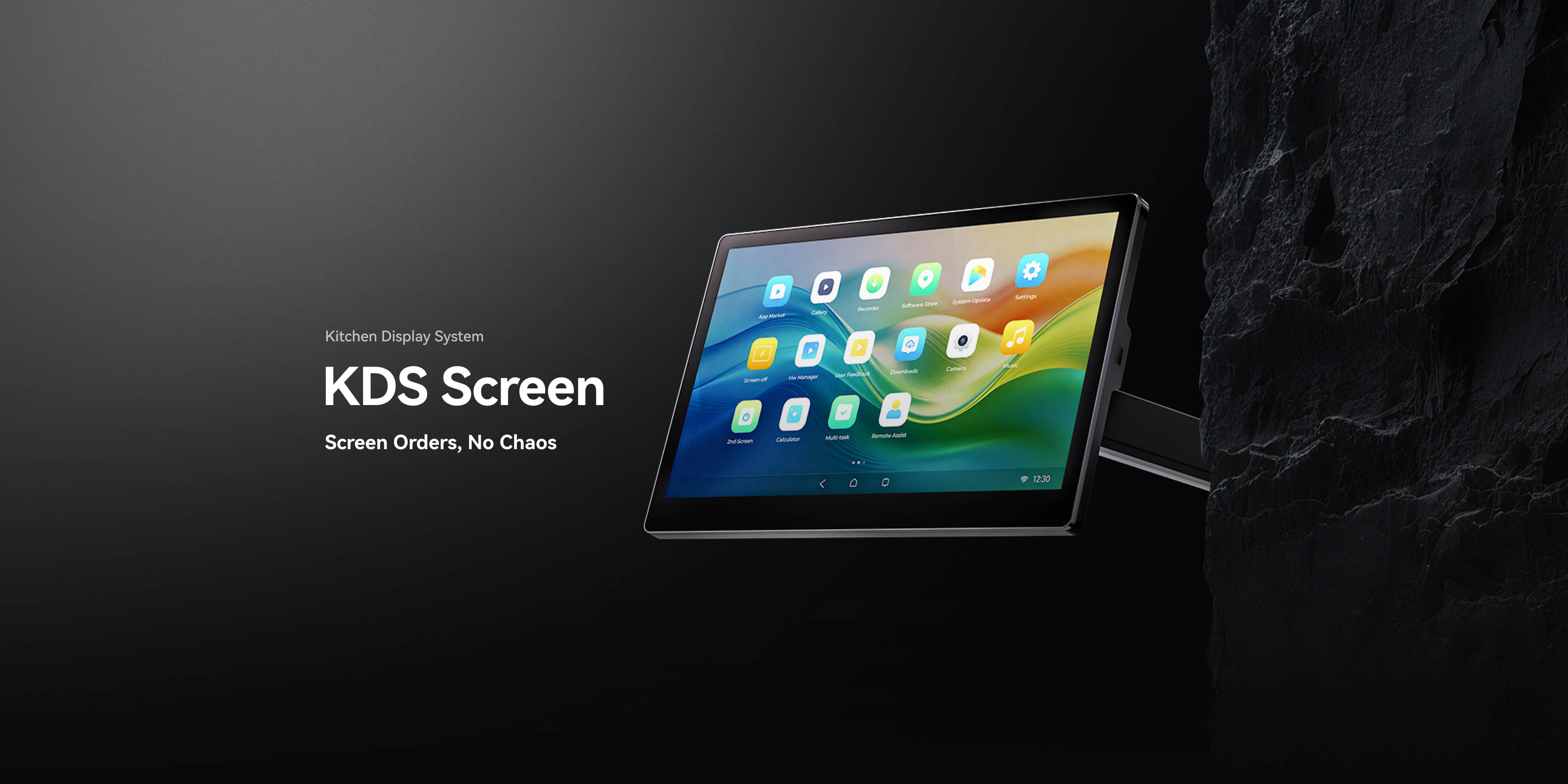

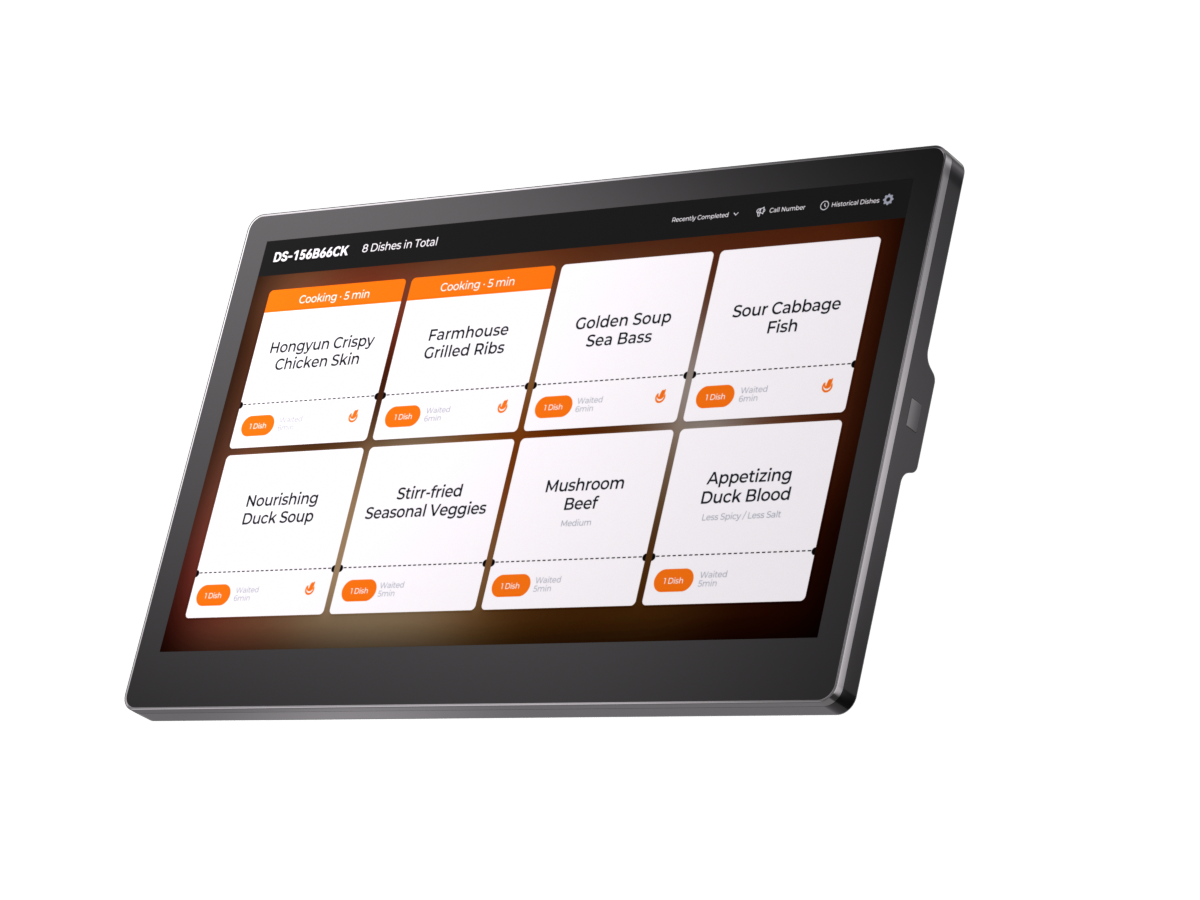

KDS Kitchen Display Screen

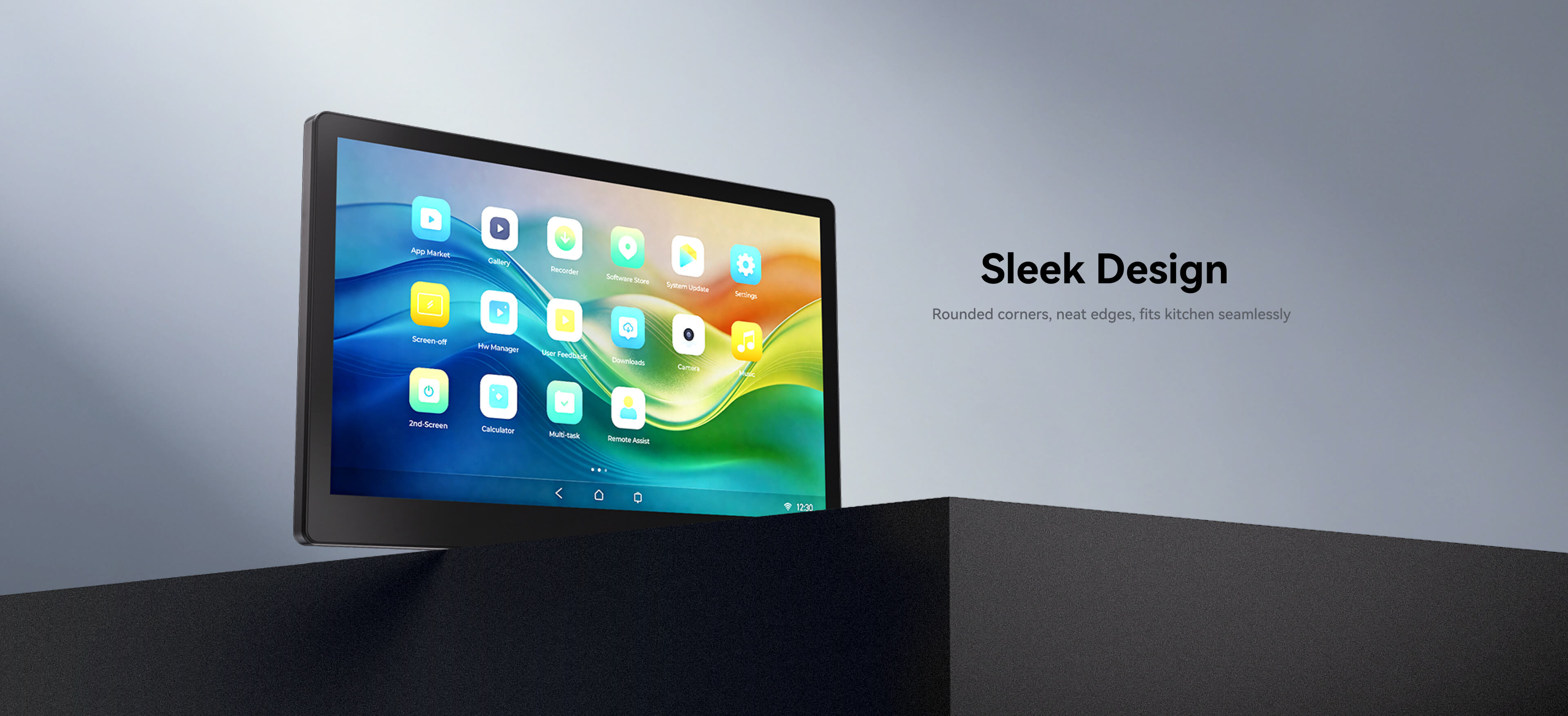

Appearance
Multiple sizes, more choices
Display Size
344.7*194.1mm
Bare Unit Dimensions
372.5×234.5×28.3mm
Bare Unit Weight
1.4kg
Packaging Dimensions
430*321*72mm
Packaging Weight
1.9kg

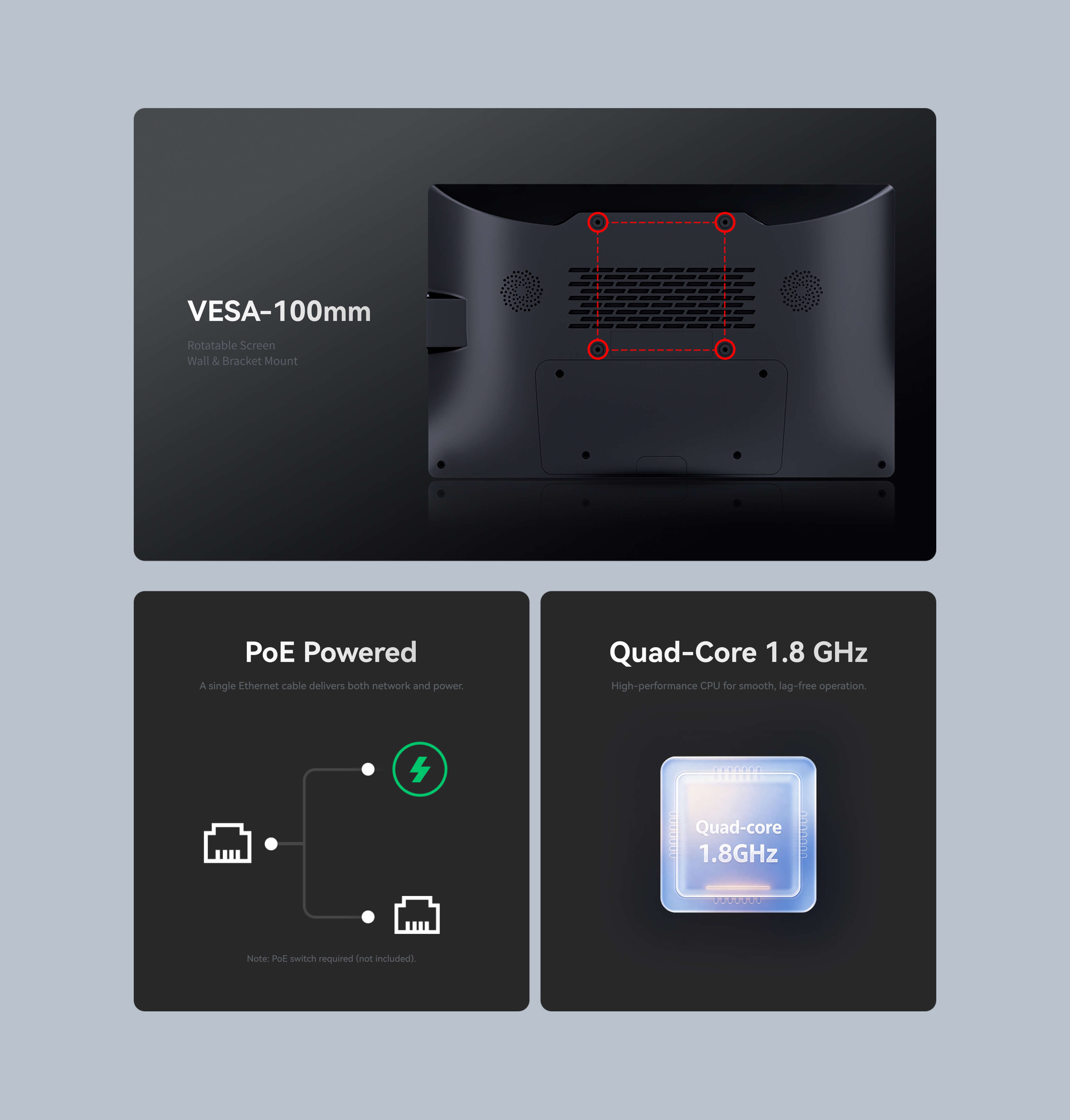

VESA spec
100×100mm

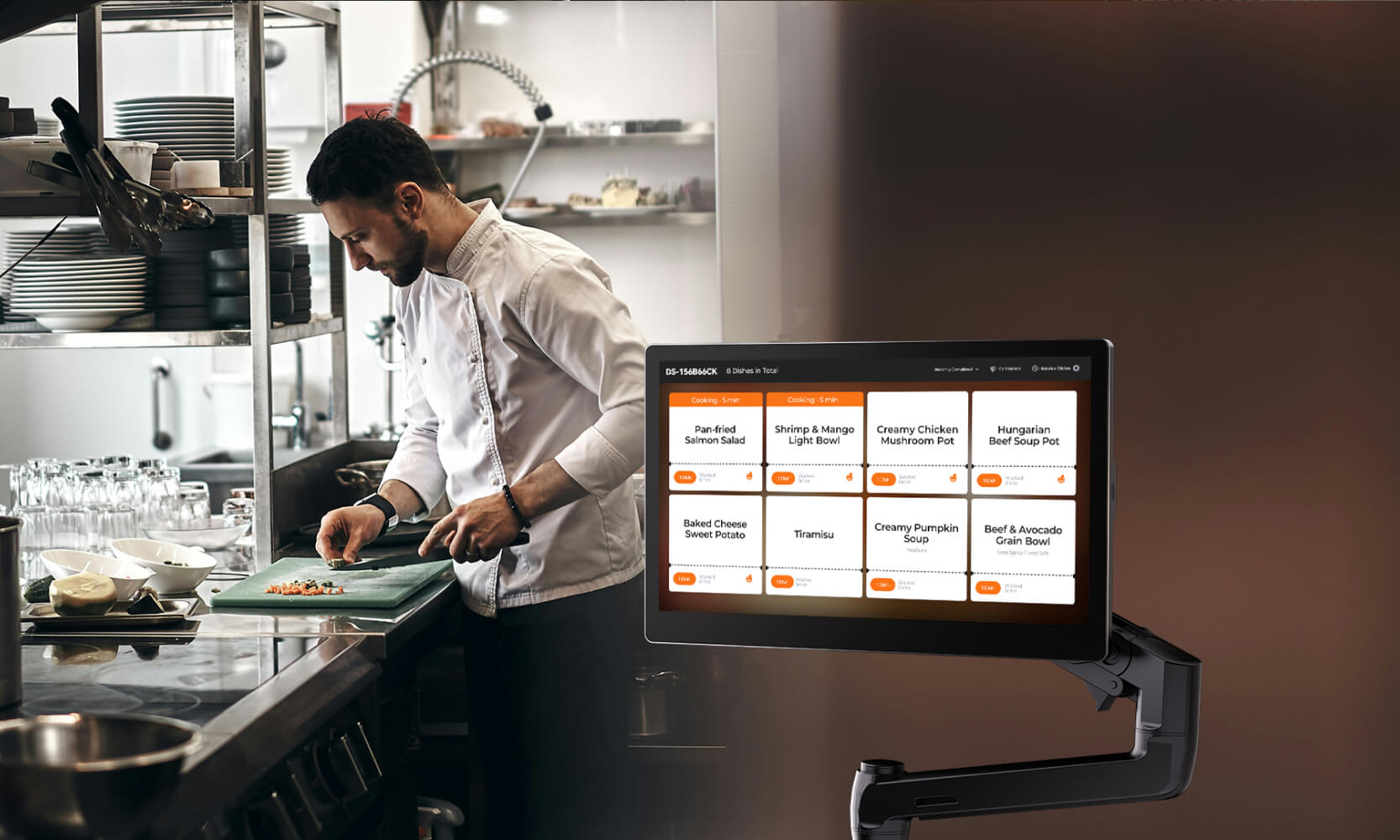

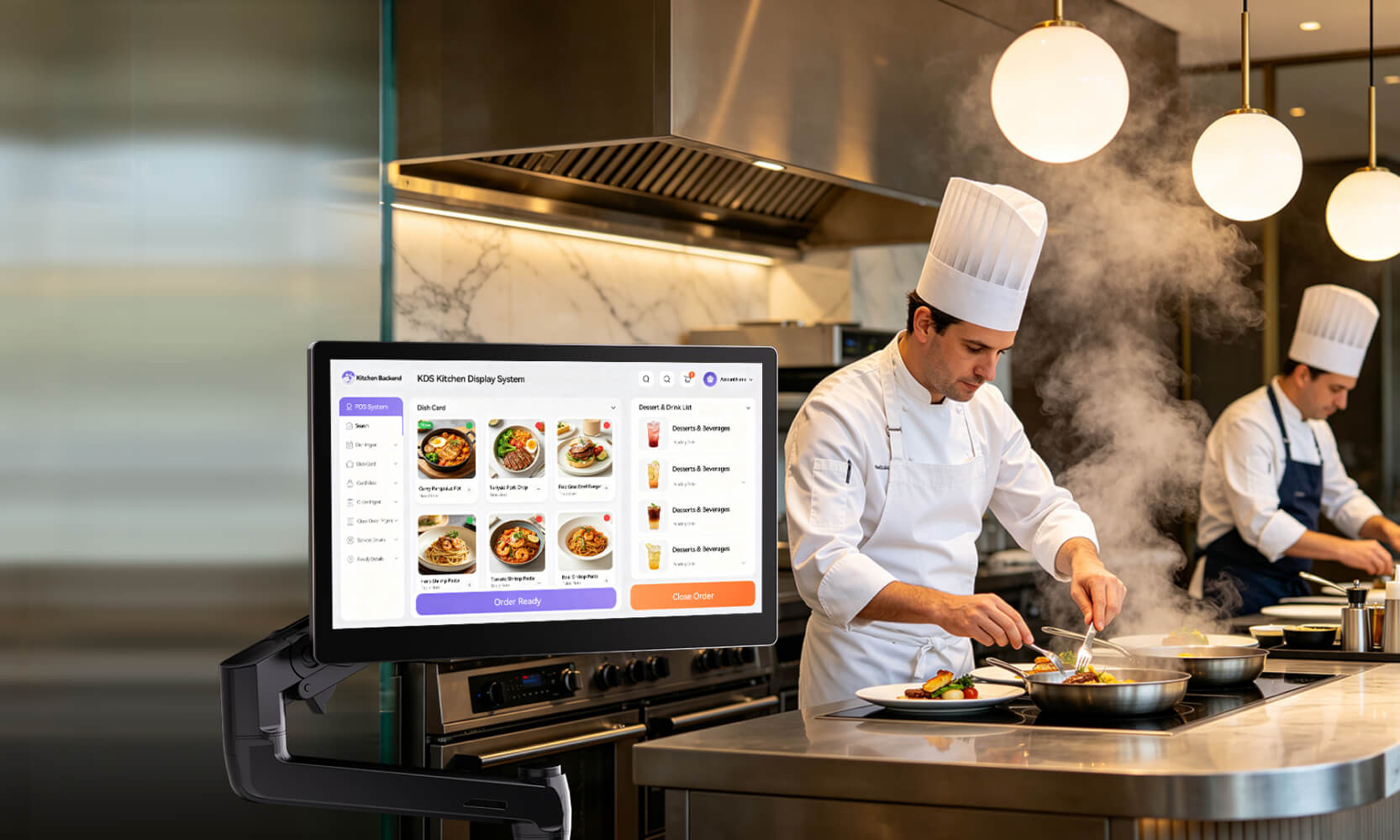

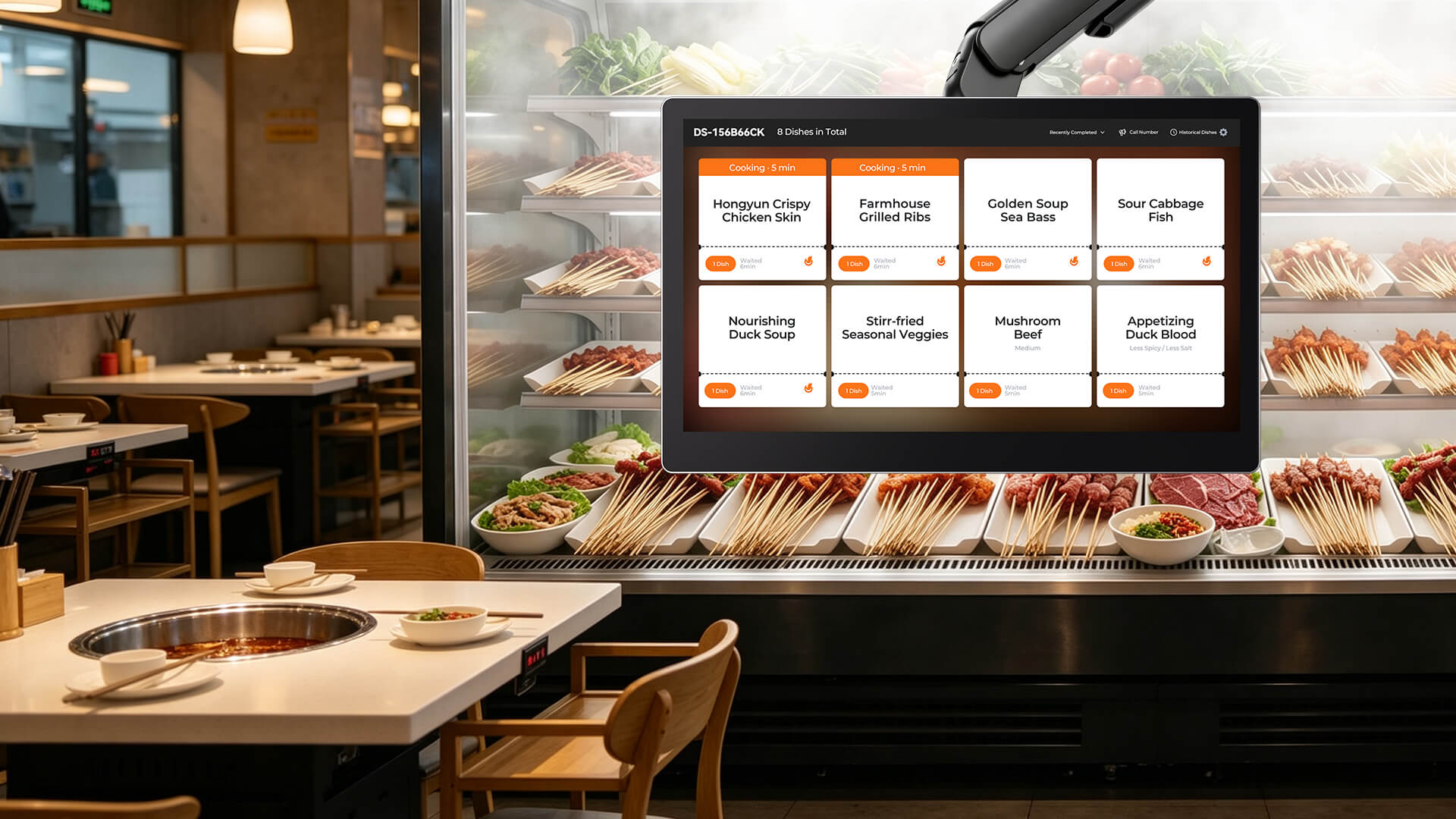

Application Scenarios
Technical Specifications
Model
SRK1-156B66C
Operating System
Android 14.0
Processor
Quad-core Cortex-A55
Memory & Storage
4G RAM+32G ROM
Display
15.6" FHD1920*1080
Speaker
3Wx1
Wi-Fi
2.4G/5G Dual-band WiFi6 (IEEE 801.11a/b/g/n/ac/ax)
Bluetooth
Bluetooth 5.4Supported
Wired Network
LAN 100M POE Power Supply(Optional)
Buttons
Power Key (Screen-lock Key)xl
Touch
Multi-point Capacitive Touch
Interfaces
DCxl, USBx2, LANINxT
Power Adapter
Input:100~240V AC ACOutput : DC 12V/3A
Operating Environment
Operating Temp :0°C~40°C Storage Temp: -20°C~60°C
Unit Dimensions
372.5x234.5x28.3mm
