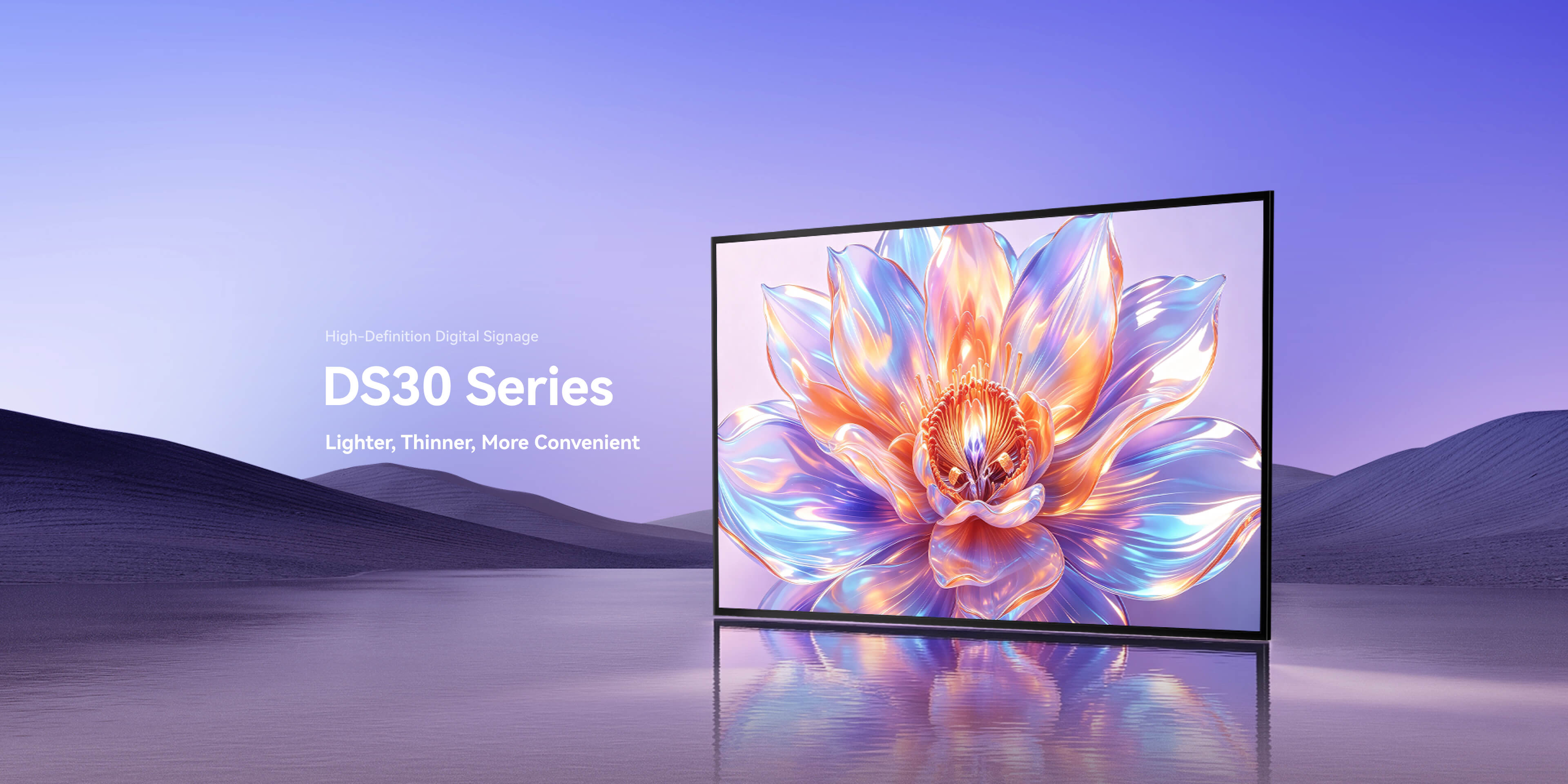

DS30 series

DS30 series DS30 series

Product Highlights

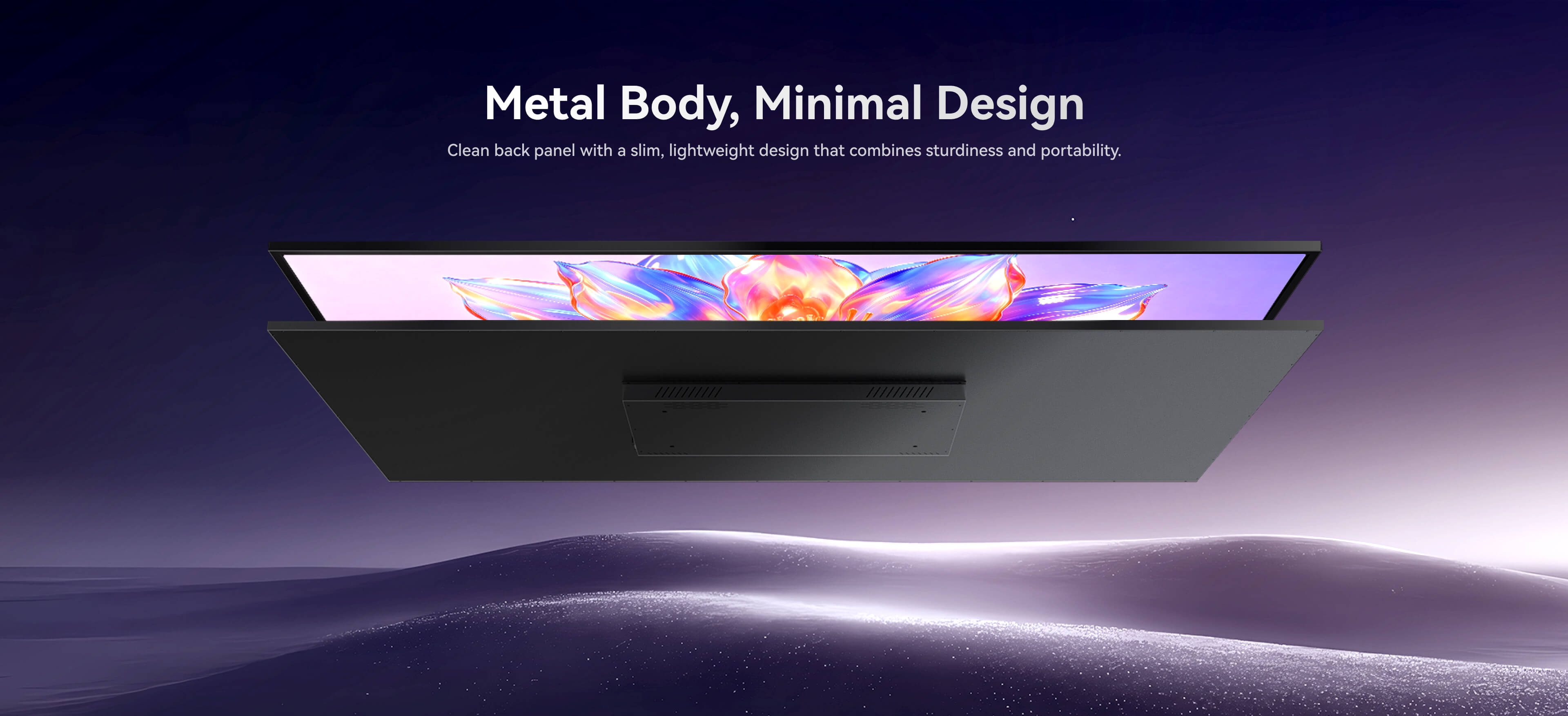

  • Slim structuremetal body with a clean, simple design

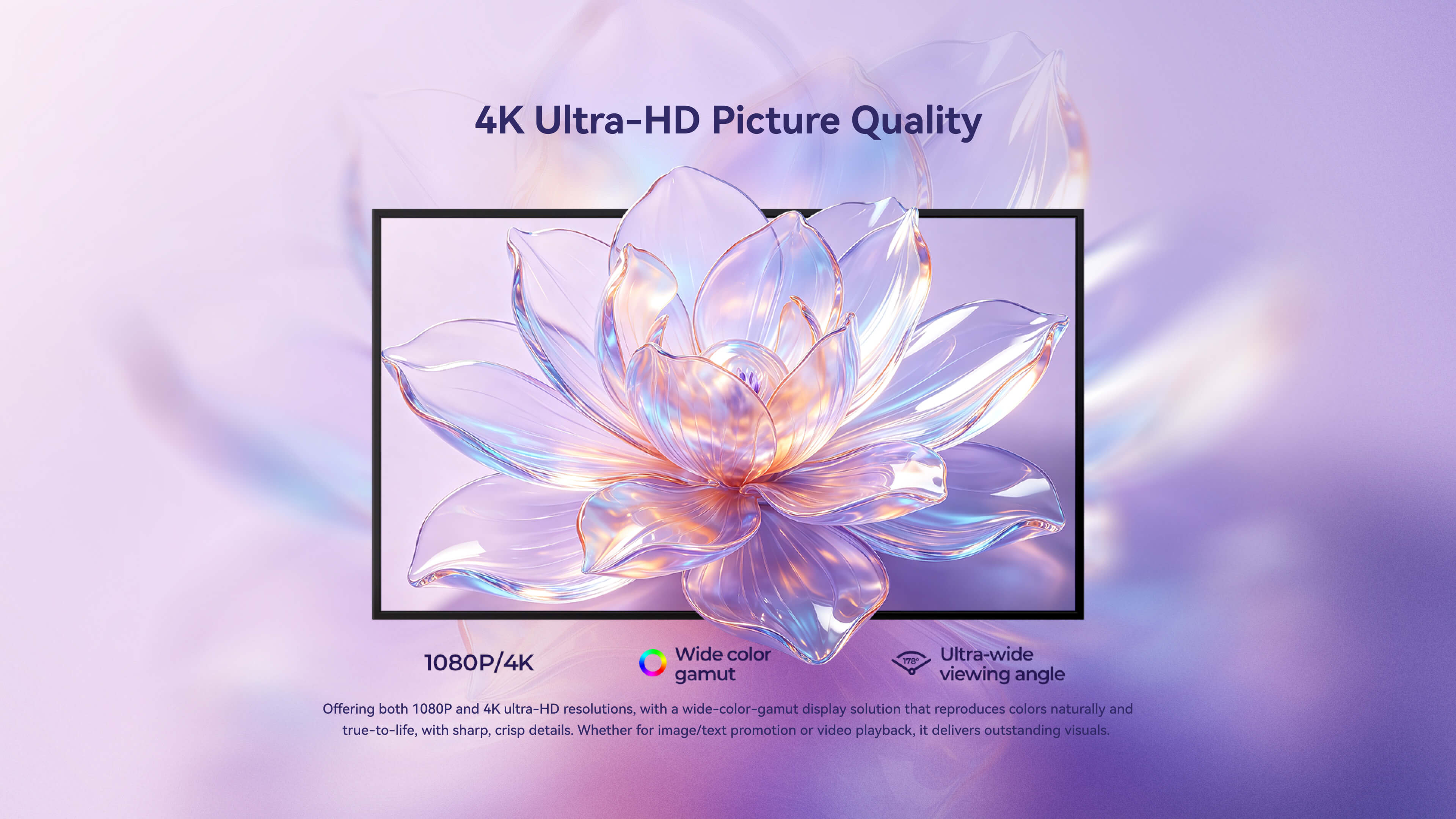

  • HD display4K / 1080P resolution

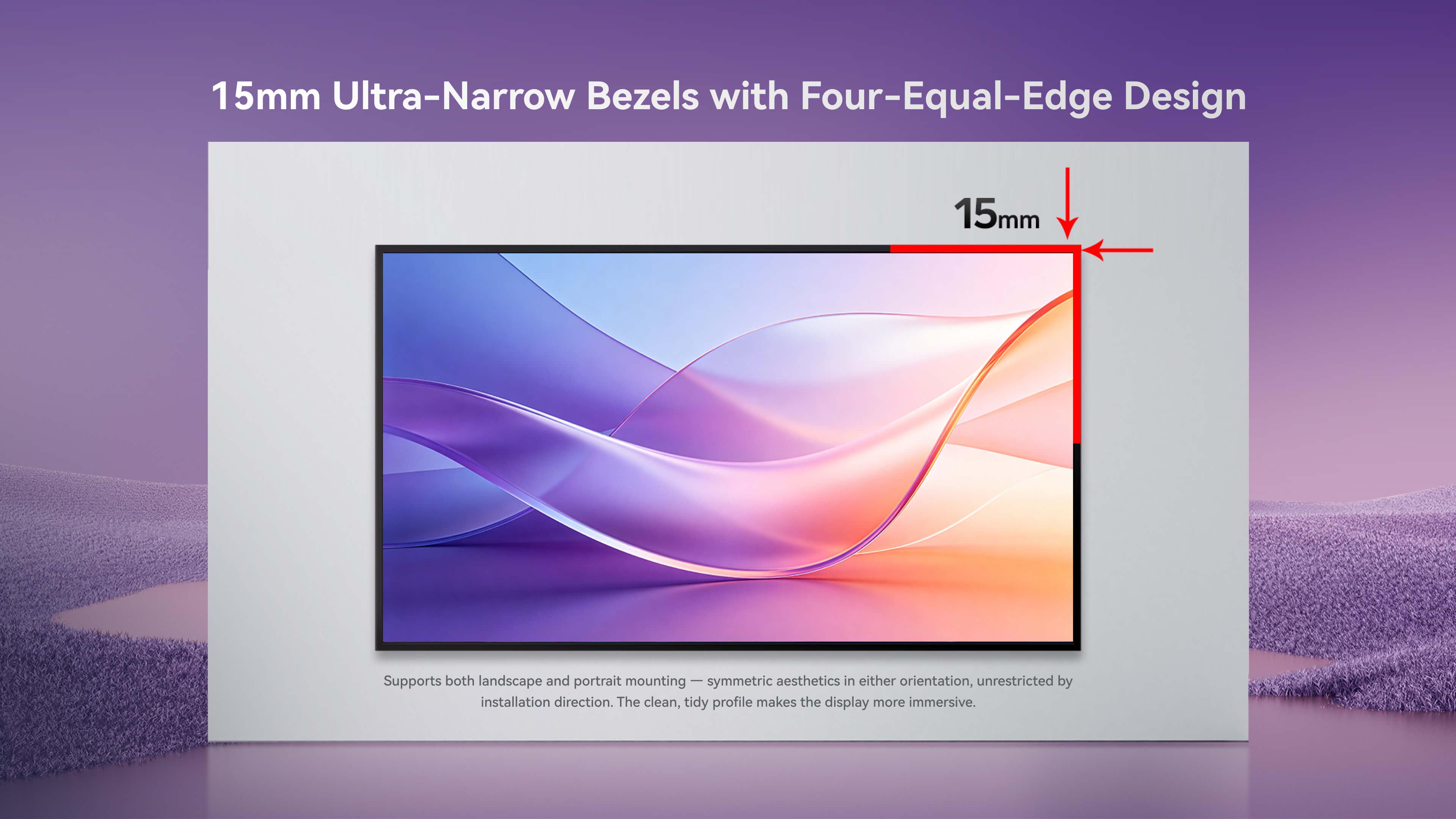

  • Four equal narrow bezels15mm ultra-narrow equal bezels

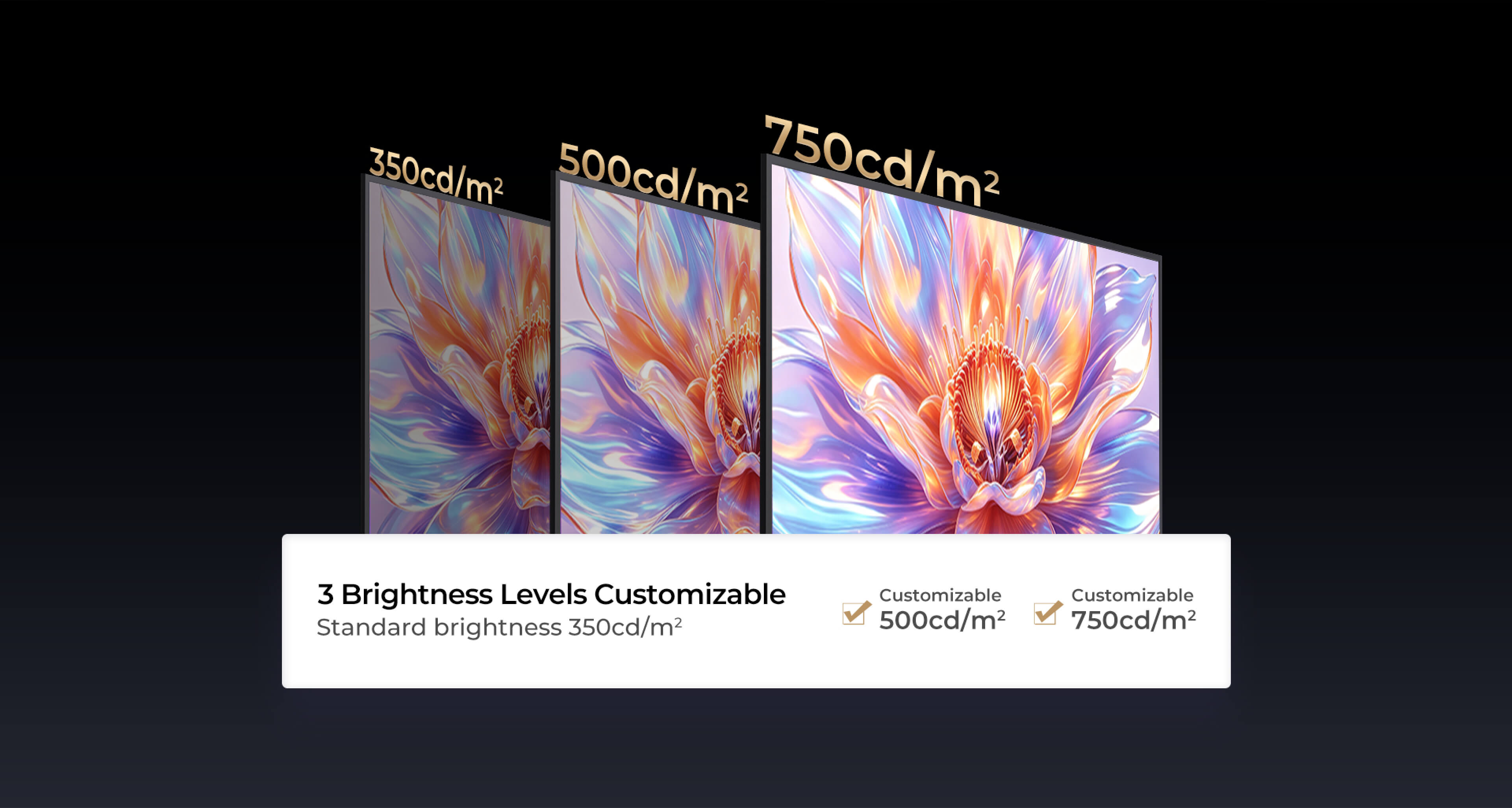

  • Multiple brightness3 brightness levels customizable
  • Dual-source publishingAI remote publishing + USB local playback

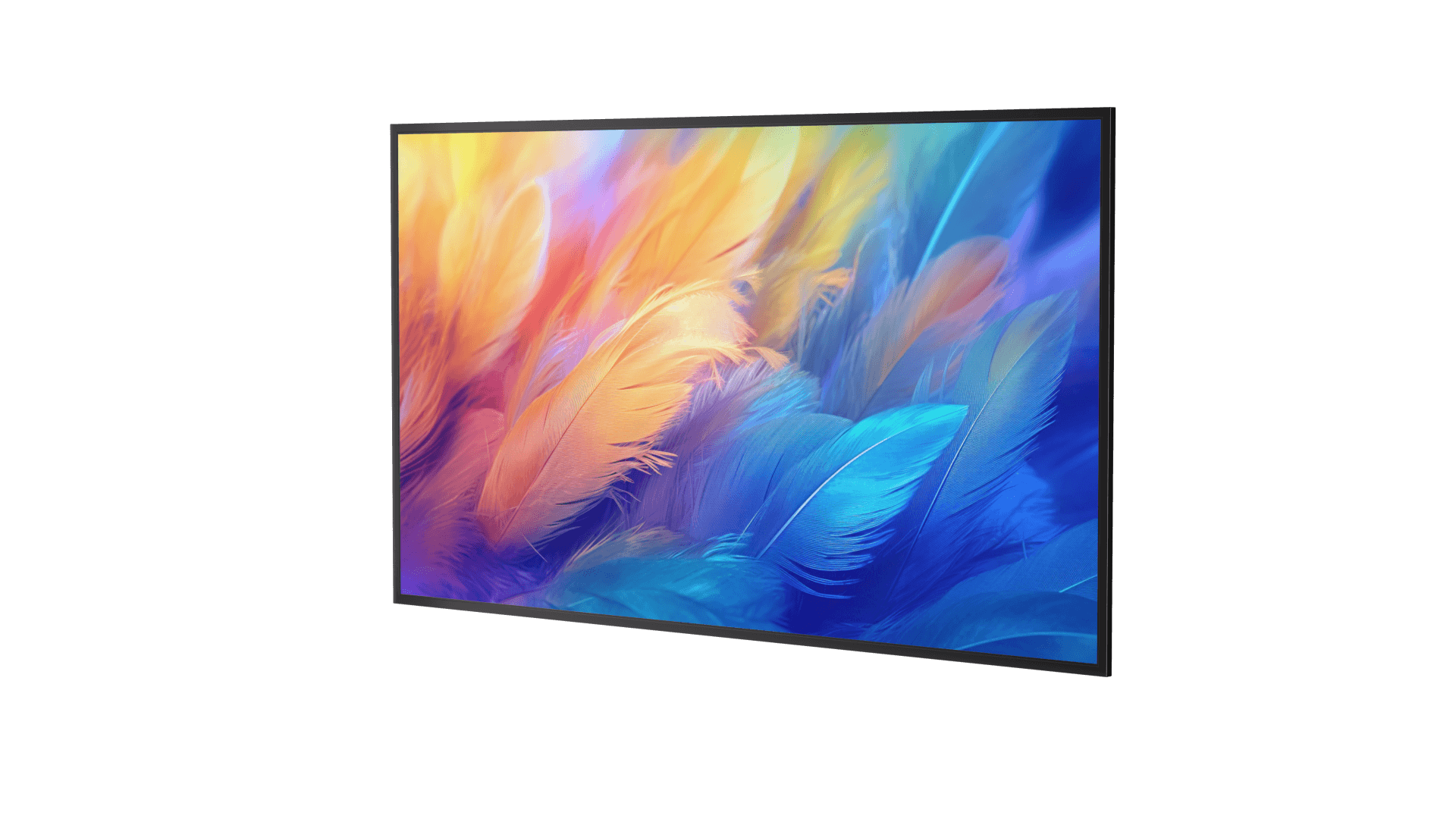

Appearance

DS30 series
DS30 series
DS30 series
DS30 series
DS30 series

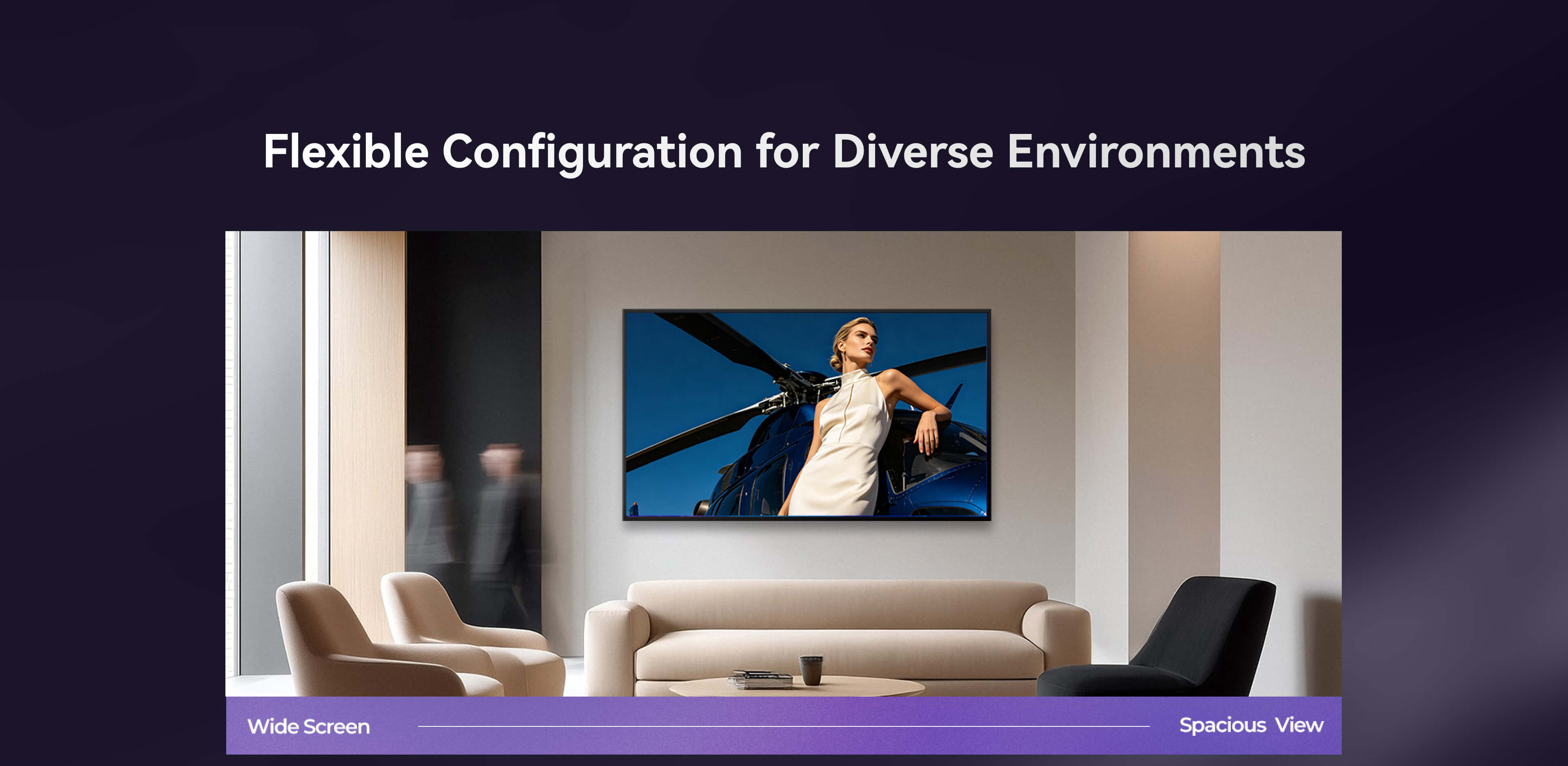

Multiple sizes, more choices

Display Size

697.7×392.2mm

Bare Unit Dimensions

733.7×431.2×42.2mm

Bare Unit Weight

7kg

Packaging Dimensions

800×545×145mm

Packaging Weight

10kg

VESA Hole Spacing

200×200mm

Display Size

940.9×529.3mm

Bare Unit Dimensions

975.5×564.6×42.2mm

Bare Unit Weight

10.4kg

Packaging Dimensions

1045×680×145mm

Packaging Weight

14.5kg

VESA Hole Spacing

400×200mm

Display Size

1073.8×604mm

Bare Unit Dimensions

1107.8×637.5×42.2mm

Bare Unit Weight

12.9kg

Packaging Dimensions

1180×760×145mm

Packaging Weight

18kg

VESA Hole Spacing

400×200mm

Display Size

1209.6×680.4mm

Bare Unit Dimensions

1243×713.8×42.2mm

Bare Unit Weight

15.3kg

Packaging Dimensions

1320×830×145mm

Packaging Weight

21kg

VESA Hole Spacing

400×200mm

AI Content Delivery - Supports 20+ Languages and Regions

Learn More
AI Content Delivery
Centralized remote management
Multi-format compatible
Scheduled targeted release

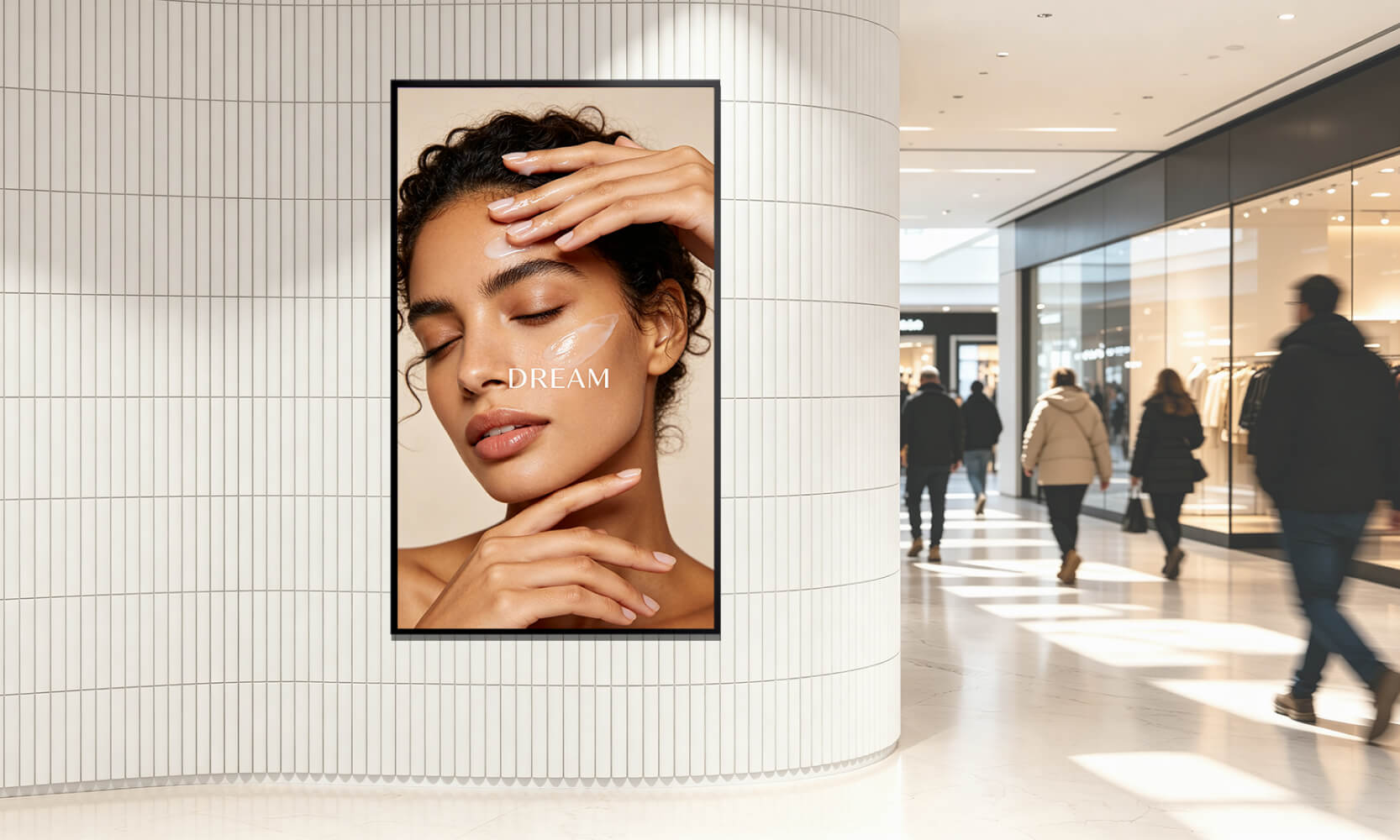

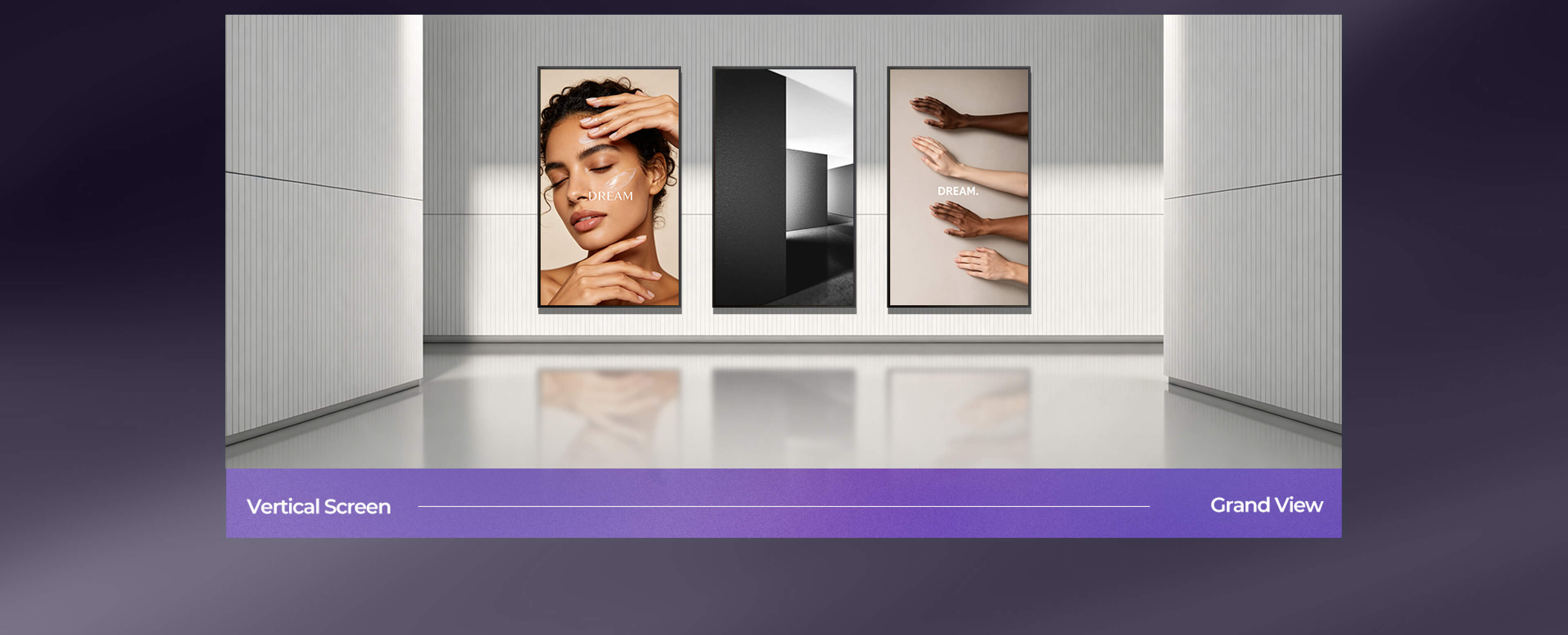

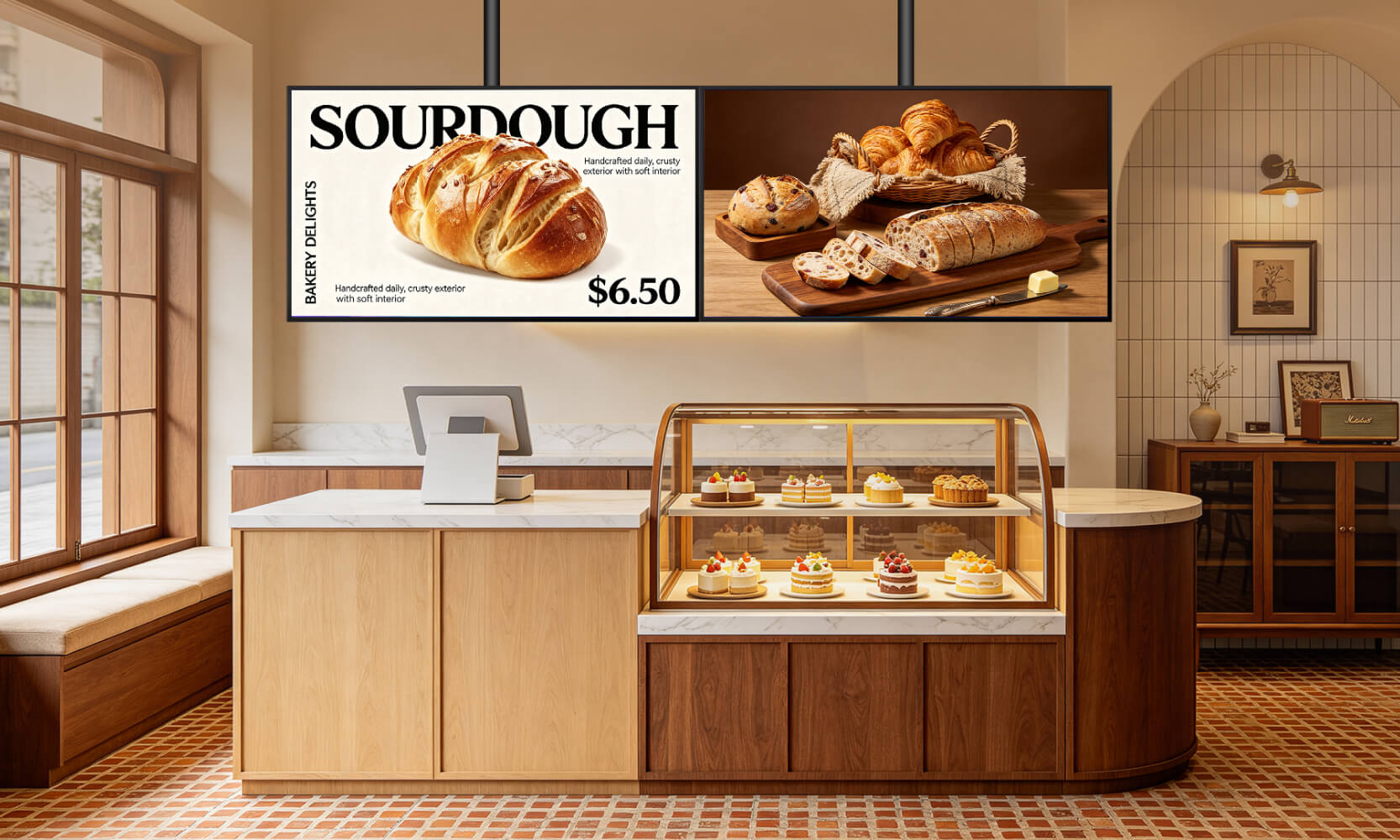

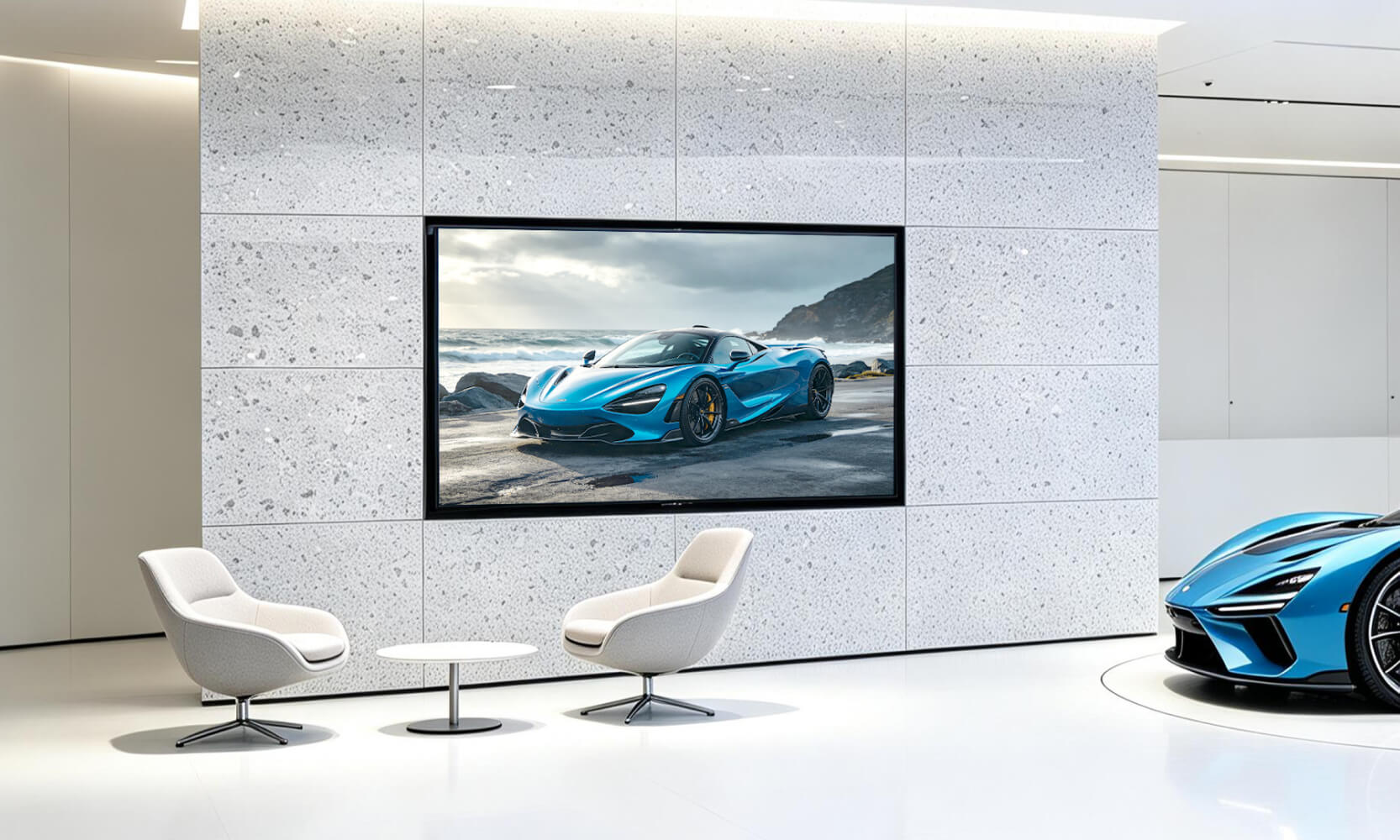

Application Scenarios

Application Scenarios
Application Scenarios
Application Scenarios

Technical Specifications

Size selection

32"、43"、49"、55"

Brightness

350cd/m2 (standard) 500cd/m2 (customizable) 700cd/m2 (customizable)

Resolution

32"-49": 1920x1080 55": 3840x2160

Power

AC/100V~240V

Aspect Ratio

16:9

System Version

Android 14.0

CPU

Quad-core Cortex-A55

GPU

Mali-G52

Interfaces

USB2.0x2, RJ45x1, TF Card Slotx1, Earphone Jackx1, HDMI OUTx1

Standby Power Consumption

0.5W

Typical Power Consumption

35W/50W/85W/90W

Operating Temperature

0°C~50°C

Operating Humidity

10%RH~90%RH

User Manual

Product manual (including certificate of conformity) x1

Attachments

Wall-Mount Bracket x1 Screw Pack x1 Antenna Rod x1 Remote Control x1

Cables

1.5m power cord x1

Downloads

DS30 Product Brochure

PDF · 1.90MB
